GRAND G340

COMPARTMENT CHART

1 – Bow compartment
2 – Console storage compartment
3 – Rear dry compartment
4 – Rear lower compartment

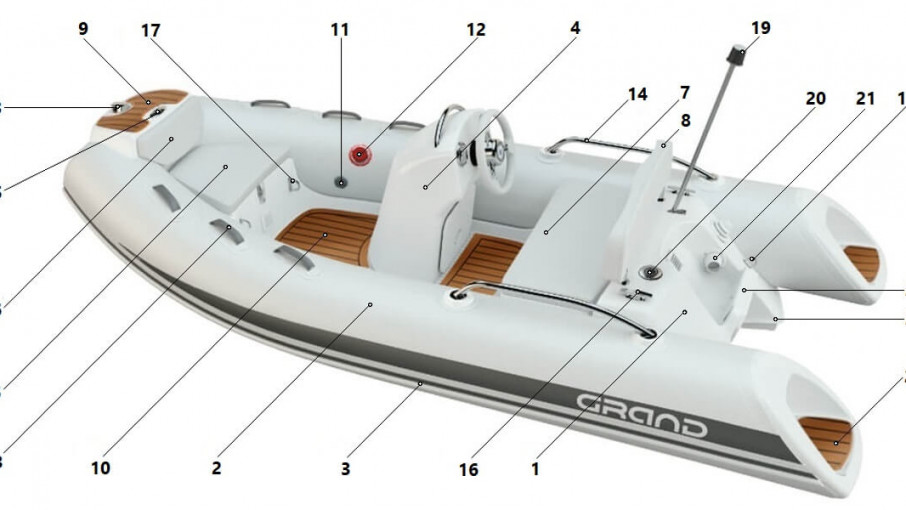

GENERAL ARRANGEMENT OF A BOAT

1 – Fiberglass hull with HSH system and transom expansion
2 – Buoyancy tube
3 – Inflation / deflation valve
4 – Fuel cap
5 – Front lifting eyes
6 – Rear lifting eyes
7 – Cleat
8 – Antiskid deck surface
9 – Doubled raised rubbing strake
10 – Safety grab handles
11 – Molded-in stern stowage with seat cushion
12 – Rear seat back with cushion
13 – Console CL-07
14 – Bow step plate with pull-up cleat, navigation lights
15 – Molded-in bow stowage with cushion
16 – Safety handles
17 – Fiberglass step ends of inflatable tube
